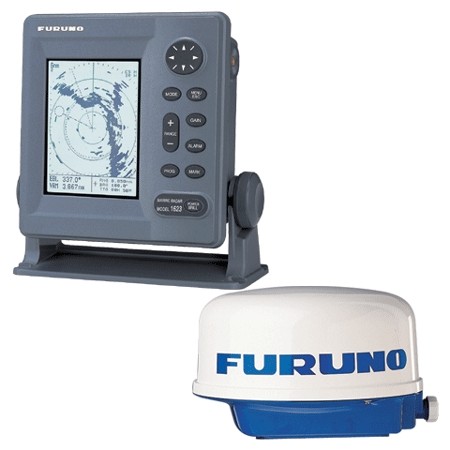

Furuno 1623 RADAR, 6" LCD Display, 16 Miles, 15" Radome Antenna

Furuno 1623 RADAR, 6" LCD Display, 16 Miles, 15" Radome

1623 Display 1623 Antenna 1623 Range Power Output Hor. Beamwidth 6" Mono LCD 15" Radome 16 n.m. 2.2 kW 6.2 degrees Furuno 1623 RADAR, LCD Display The Furuno 1623 Radar is a 2.2kW radar has a 16 nautical mile range, yet will zoom down to 1/8 nautical mile for tight navigation in harbors and inlets. The Furuno 1623 radar lets you readily identify objects, thanks to a high definition 6 Silver Bright LCD screen that clearly separates targets. Plus, the four-tone target display lets you easily differentiate between stronger and weaker echoes, helping to alert you of any danger. The Furuno 1623 radar is big on power, clarity and advanced radar features. The slim-line monochrome LCD display and lightweight radome antenna make it ideal for power or sail boats as small as 17 feet. A Sailor's dream the Furuno 1623 RADAR draws 8 watts in RADAR standby Position. This makes the Furuno 1623 RADAR with 15" dome a great fit! Furuno 1623 Radar Standard Features Waterproof, 6 Inch Silver Bright Monochrome LCD Display 13 User Selectable Range Scales from 1/8 to 16 N.M. Ergonomic design with predictable menu Display Resolution of 240(H) X 320(V) Dots Targets Displayed in up to 4 Levels of Gray Tones 2.2 Kilowatt Transmitter Unit New Tri-speed 15 radome antenna, increases RPM at short ranges for better target accuracy 3 Transmitter Pulse lengths and Repetition Rates Linear Receiver with 10 dB Noise Figure Automatic Receiver Tuning Automatic or Manual Sea-Clutter (STC) Adjustment Automatic or Manual Receiver Gain Adjustment Sector Blanking Rain Clutter (FTC) Control Echo Stretch and Interference Rejection Modes Watchman Mode to control the RADAR system for Vessel Safety Reverse Video Display (White Targets and Marks on a Black Background) Full Screen Navigation Data Display in the Standby Mode* Omni Pad Control for rapid Cursor and Menu Operation Picture Off-Center Shift Electronic Bearing Line and Variable Range Marker Target or Echo Trails with Selectable Time Intervals Waypoint Lollipop On-Screen to aid in Vessel Navigation* Adjustable Duplex (In or Out) RADAR Guard Zone Alarm TLL (Target Lat/Lon) output for use with plotter (must accept TLL sentence info) Time offset adjustment [PROG] key provides menu shortcuts User programmable Nav Data Screens Ability to connect BBWGPS GPS/WAAS receiver Wind indication* Furuno 1623 Radar in Review: Furuno 1623 RADAR General Facts- Range Resolution 16 m Bearing Discrimination 6.7° Minimum Range 22 m Bearing Accuracy Within 1° Range Ring Accuracy 1.0 % of range or 8 m, whichever is the greater Furuno 1623 RADAR SCANNER UNIT Radiator Micro-strip Polarization Horizontal Antenna Rotation Speed 24/31/41 rpm nominal (auto-select according to range) Radiator Length 34 cm Horizontal Beamwidth Less than 6.2° Vertical Beamwidth 25° Sidelobe Attenuation Less than -20 dB Furuno 1623 RADAR TRANSCEIVER MODULE Frequency 9410 MHz ±30MHz (X band) Modulation P0N Peak Output Power 2.2 kW Modulator FET Switching Method Intermediate Frequency 60 MHz Tuning Automatic Receiver Front End MIC (Microwave IC) Bandwidth 15 MHz (short pulse), 5 MHz (medium/long pulse) Duplexer Circulator with diode limiter Time of Heat-up 1-min. approx. Furuno 1623 Radar Shipping Information 24 lbs., 1 Carton Furuno 1623 Radar Power Requirements 12 or 24 VDC Only, 36 Watts Approximately 8 Watts, in Standby/Watchman Mode Furuno 1623 Radar Notes * Appropriate Nav Data Input Required. Need More Furuno 1623 RADAR Info? • Furuno 1623 RADAR Brochure (.pdf) • Furuno 1623 RADAR Operations Manual (.pdf) • Furuno 1623 RADAR Installation Manual (.pdf) • Furuno 1623 RADAR Dimensional Drawing (.pdf)
