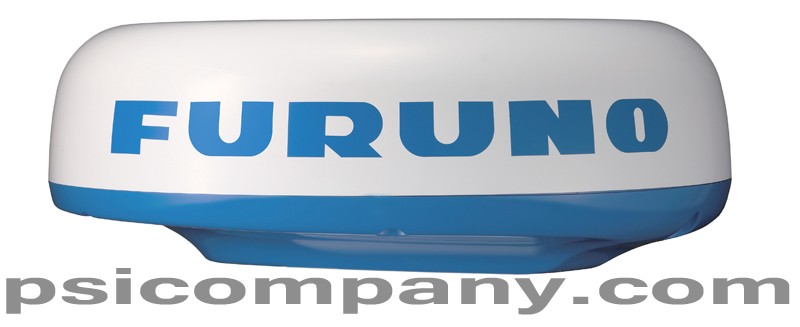

Furuno DRS4D 24" Radar Sensor with Radome Antenna, Navnet 3D

Furuno DRS4D 24" Radome Radar Antenna

Display Supplied Separately Antenna Range Power Output Hor. Beamwidth Furuno MFD8 Furuno MFD12 Furuno MFDBB 24" Radome 36 n.m. 4 kW 3.9 degrees Download the NavNet 3D Full Color Brochure Furuno DRS4D RADAR with 19" Radome Antenna Ultra High Definition (UHD™) Digital Radar Furuno DRS4D RADAR has taken its NMEA award-winning radar technology to the next level with Ultra High Definition Digital Radar. UHD™ offers crystal clear, noise-free target presentation with automatic real-time digital signal processing. Antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length. Commercial-grade radar performance is now available in the ultimate MFD navigation suite. The Furuno DRS4D RADAR incorporates a 4kW T/R within a sleek 24" radome. Furuno DRS4D RADAR with 19" Radome Antenna Features: 4kW, 36 n.m. Radar Antenna for NavNet 3D in a stylish 24" Radome Ultra High Definition (UHD™) Digital Radar offers crystal clear, noise-free target presentation with automatic real-time digital signal processing Real-time digital auto Gain/Sea/Rain controls to deliver noise-free radar presentation Radar antenna rotation speed (24/36/48 rpm) is automatically shifted to the appropriate pulse length Simultaneous scanning technology drives our powerful dual-range radar, providing unsurpassed target detection. With each sweep of antenna, dual progressive scan transmissions are sent, received and processed to display two separate radar ranges on your NavNet 3D display simultaneously. Each radar presentation acts autonomously, allowing for manipulation of individual gain and clutter controls Radome incorporates a NMEA 2000® port to which certain NMEA2000® sensors can be directly connected. Power for these networked sensors is supplied directly from the radome itself, allowing for flexible installation of multiple NMEA 2000® sensors without the need to run cables all the way to the main processor unit.   Furuno DRS4D RADAR Information: ● NavNet 3D Brochure (4MB) ● Navnet DRS4D Radar Sensor Installation Manual (2MB) ● NavNet 3D Frequently Asked Questions (572KB) ● Furuno DRS4D Packing List (16KB) ● See All Furuno Navnet 3D Products Furuno Navnet 3D Video Information: ● Furuno Navnet 3D Video and Introduction ● Furuno Navnet 3D on a Moving Vessel ● Furuno Navnet 3D SeaTrial Showing RADAR Overlay and AIS
