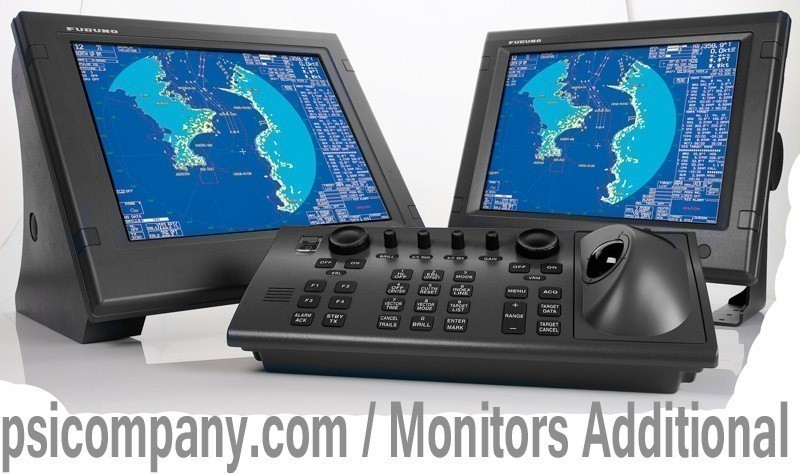

Furuno FAR2137SBB S-Band Black Box RADAR with 12' Antenna

Furuno FAR2137SBB S-Band Black Box RADAR with 12' Antenna

Display Antenna Range Power Output Hor. Beamwidth Supplied Separately 12' Open Array 96 n.m. 30 kW 1.8 degrees   Call For Direct Discount Pricing and/or click here to receive an e-mail quote!! Furuno FAR2137SBB S-Band Black Box RADAR with 12' Antenna The revolutionary FAR-2137SBB series of S-band radars are the result of FURUNO's 50 years of experience in the marine electronics and advanced computer technology. The FAR2137SBB/12 utilizes a user-supplied Multi-Sync SXGA Monitor with DVI-D input, allowing the user to select virtually any type and size display. Different colors are assigned for marks, symbols and texts for user-friendly operations.  Target detection is enhanced by sophisticated signal processing techniques such as multi-level quantization (MLQ), echo stretch, echo average, and radar interference rejecter. Two guard zones can be set at required ranges in any sector. Other ship's movements are assessed by advanced target tracking software and alerted by CPA/TCPA data readouts. The FAR-21x7S series provide ARPA and AIS (transponder unit is required) function as a standard. The FAR2137S/12 utilizes a 12' antenna radiator. The S-band radar assures target detection in adverse weather where X-band radar are heavily affected by sea or rain clutter.      Standard Features: Improved detection capability by new MIC and I/F amplifier High resolution DVI-D LCD display providing crisp echo images Two independent X- and S-band radars can be interswitched to meet SOLAS requirements on ships 3,000 - 10,000 GT Easy operation by customizable function keys, trackball/wheel palm module, and rotary controls Low spurious magnetrons meeting ITU-R unwanted emission standards Standard ARPA functions displaying 100 ARPA targets acquisition Display up to 1000 AIS symbols Complies with the following IMO and IEC regulation: IEC 60936-1 shipborne radar IEC 60936-2 HSC radar IEC 60872-1 ARPA IEC 60872-2 ATA IEC 60832-3 EPA IEC 60945 General requirements IMO MSC.64(67) Annex 4 IMO A.823(19) Optional track ball system for user friendly operation from a remote station ARPA function is provided as a standard Interswitch capability without dedicated hardware for dual or multiple radar/ARPA installation - up to four radar systems can be connected in the network Power Requirements: Shipped at 115/230 VAC 115/230 VAC, 1ø, 50/60 Hz, 270 VA 440 VAC, 3ø, 60 Hz 380 VAC, 3ø, 50 Hz Antenna Unit: 230 VAC, 3ø, 60 Hz 380 VAC, 3ø, 50 Hz 440 VAC, 3ø, 60 Hz 115 VAC, 3ø, 60 Hz with optional transformer RU-5693 30 VAC, 3ø, 50 Hz with optional transformer RU-6522 440 VAC, 3ø, 50 Hz with optional transformer RU-5466-1  Need More Info?  • Product Brochure (.pdf)  • Operations Manual (.pdf)  • Installation Manual (.pdf)
