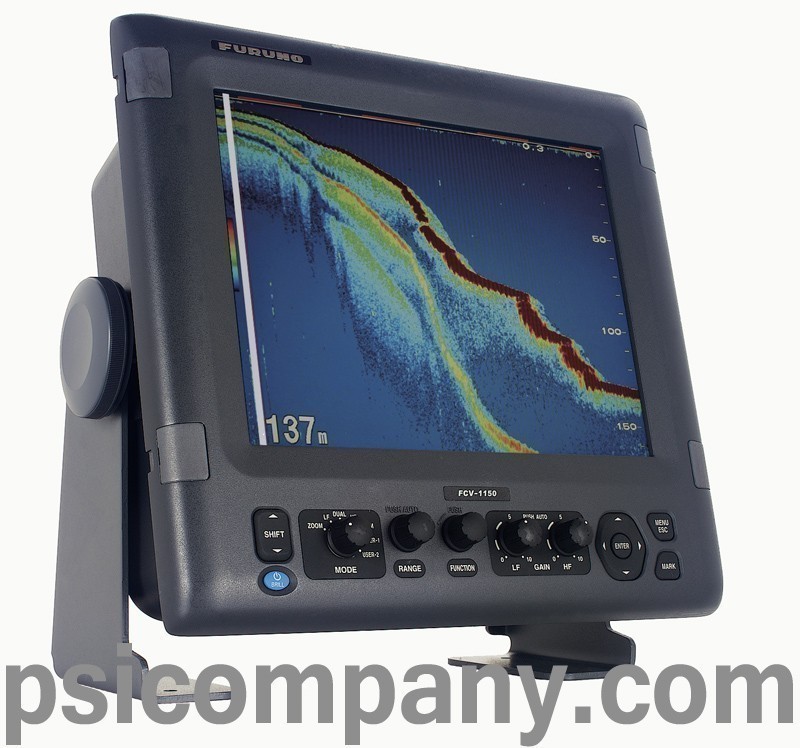

Furuno FCV1150 LCD Fishfinder, 12.1" Color LCD, no transducers

Furuno FCV1150 Color LCD Fishfinder, 12.1" LCD, no transducers

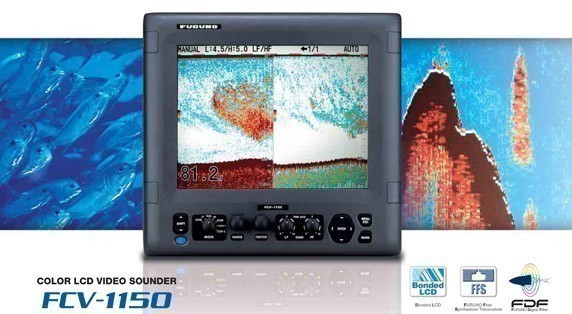

Display Range Frequency Power Output 12.1 Color LCD 9000' Selectable 1, 2, or 3 kW Furuno FCV1150 LCD Fishfinder, transducers supplied separately The FCV1150 is a color digital sounder designed for a variety of professional fishing operations. It’s high-brightness 12.1” color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight. The FCV1150 employs Furuno Free Synthesizer (FFS) technology which permits a wide selection of operating frequencies from 28 to 200kHz. If a Furuno transducer is used, operating frequency is automatically set in the menu, and can be shifted manually at any time. This feature is useful for vessels targeting many different species of fish, and may also be used to eliminate interference that may be caused by nearby ships with transducers operating at the same frequency. Output power is selectable among 1,2 or 3 kW. A wide variety of display modes and functions are available that provide captains with simple and intuitive information for virtually any fishing requirement including Single (HF/LF), Dual, Single + Zoom, Zoom (Bottom Lock, Bottom Zoom or Marker Zoom), Mix Mode, Nav Data and A-Scope. Additionally, two custom display modes may be programmed by the operator. The FCV1150 can be interfaced with a Furuno Satellite Compass to compensate for heaving caused by the movement of the ocean, providing unwavering, stable detection even in rough seas. Faster Transmission Rate: The rate of transmission has been greatly increased by more than 30% compared with current conventional fish finders. As a result, more detailed information about underwater conditions can be gained in the same sounding interval. The FCV1150 also incorporates new transmission technique that automatically switches the echo transmission rate according to the depth of the sounding area. Transmission speed is raised in shallow waters and lowered in deep waters, providing more detailed detection of seabed and targets. Quick Gain Setting: The Gain setting for all of the echoes on the screen can be adjusted by rotating the Gain knob. Because all of the visible echoes on the screen are adjusted with the Gain settings, the correct setting for virtually any situation can be quickly and easily determined. White Edge: The top of the seabed is displayed in white to show seabed structure. This function also helps to discriminate between bottom fish and seabed. Standard Features High-brightness 12.1” LCD with AR coated glass filter and anti-polarized sunglass filter Post processing Gain Control applied to all echoes displayed on the screen White Edge bottom discrimination feature Heaving compensation available for stable echo presentation even in rough seas Furuno Digital Filter (FDF) delivers crystal clear target presentation Adjustable operating frequency and selectable output power Furuno Free Synthesizer (FFS) Transceiver allows use of easily selected operating frequencies (28/38/50/68/82/88/107/150/200kHz) Built-in rugged die-cast display cabinet, for table-top or flush mounting Transmitter Auto-matching to Furuno transducers, menu frequency settings & jumper power output settings for other transducers Day or night viewing using blue, light blue, dark blue, black or white background Targets in up to 16 colors, corresponding to echo intensity Eight ranges preset for 16 to 9000 feet, 10 to 1000 meters, or 5 to 500 fathoms Stepped range shift from 0 to 6000 feet, 2000 meters, or 1000 fathoms Maximum range shift of 12000 feet, 4000 meters, or 2000 fathoms Independent B/L & M/Z ranges, 16 to 600 feet, 5 to 200 meters, or 2 to 120 fathoms Independent range selection in the Dual-frequency mode Automatic range shift for continuous bottom acquisition and tracking Three Nav data displays to choose from: Alphanumeric, Graphic 1 or Graphic 2 * Advanced Fish Detection Features Simultaneous or independent LF and HF use with individual gain controls Triple Zoom, LF or HF Bottom-lock, Bottom Zoom, or Marker Zoom Two customized operating modes selected as User-1 or User-2 A-Scope to identify small fish, fish species as well as fish close to the bottom Tri-screen frequency mix display, LF only, HF only, and LF/HF Mix LF and HF preset clutter controls, menu set with standard, linear or custom settings LF and HF preset TVG controls, menu set for TVG level and effective distance White marker or line display, set the bottom to white for bottom fish detection Audible & visual alarms, select for fish, bottom, fish on bottom, or temperature* Horizontal variable depth marker and Vertical event (NMEA TLL output*) marker Eight step picture advance speed with ship's speed mode or picture freeze 75 kHz operation using specific Furuno only 50 kHz transducers Water temperature graph with numerical display in color and calibration menu * Shipping Information 30 lbs., 1 Carton less Transducers Power Requirements: 12-24 VDC, 50W max 100/110/220/230 VAC with optional rectifier = Need More Info?   • FCV1150 Brochure (586KB) • FCV1150 Operator's Manual Ver A1 (1MB) • FCV1150 Installation Manual Version A1 (1MB) • Packing List FCV1150 (16KB) • FCV1150 Specifications (20KB) • FCV1150 Connection Diagram (265KB)
