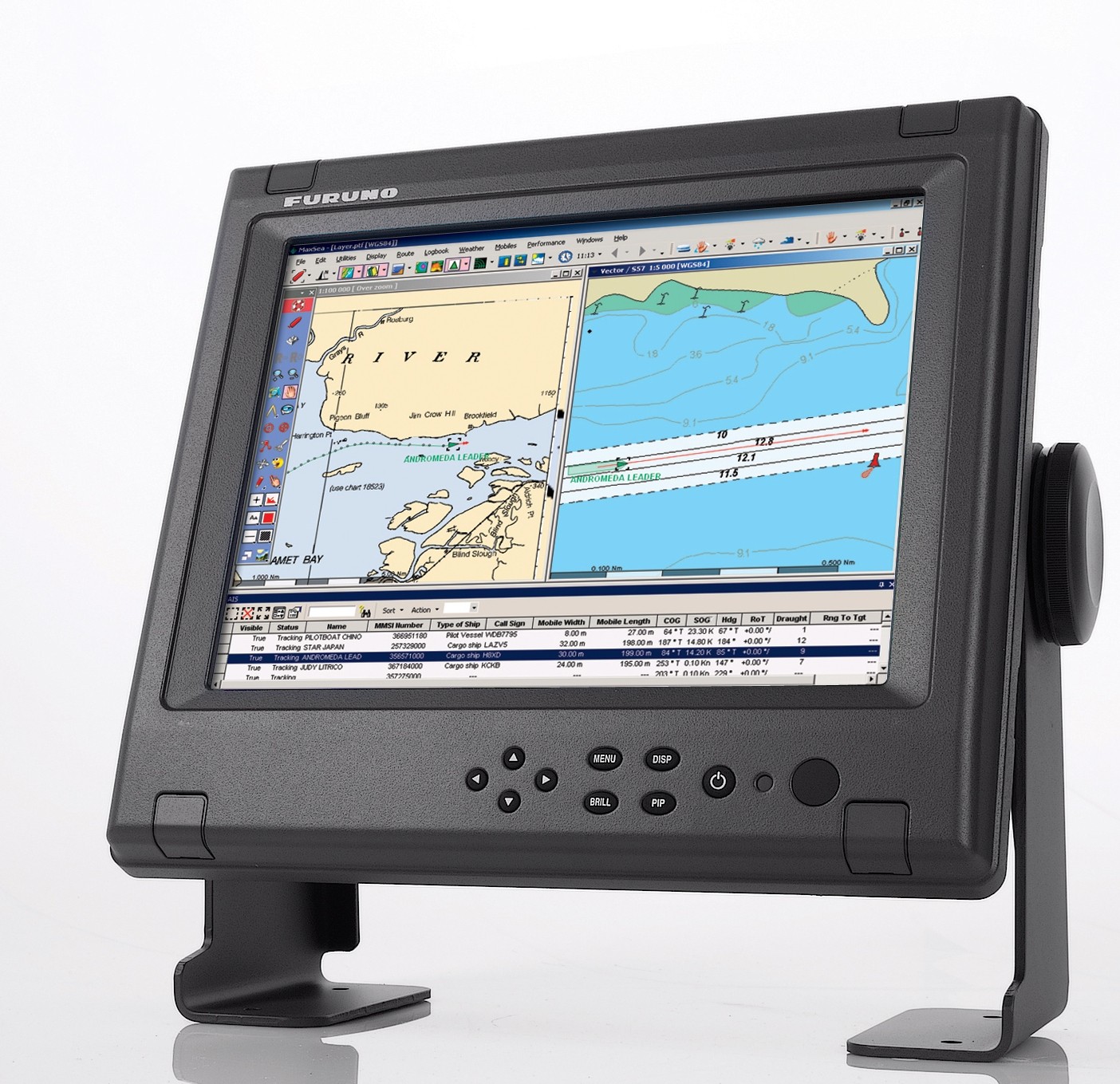

Furuno MU120C Marine Monitor, Color LCD
Display
●
Download the Furuno MU120 C Marine Monitor Brochure
The Furuno MU120C Marine Monitor is a multi-purpose
display that features the unmatched Furuno quality and reliability that you
have learned to depend on. This 12.1" color monitor features a wide range
of interface capabilities that will accommodate virtually all of your marine
display needs.
The Furuno MU120C Marine Monitor has Picture In Picture (PIP) capability with
3 NTSC/PAL inputs. The display can overlay a video window on top of the main
display. This PIP window can be resized and repositioned to anywhere on the
screen. Use the PIP function to monitor security cameras, engine room cameras
or even your satellite TV.
The Furuno MU120C Marine Monitor utilizes
an extremely bright color TFT LCD with a special AR (anti-reflective) glass
filter to cut down on annoying glare. With it's bright colors, excellent contrast
and wide viewing angle, this monitor is perfect for any tropical sunlight
or low light conditions. The Furuno MU120C Marine Monitor is an SVGA (800
x 600) display. It features a built-in scaler, which enables it to accept
high resolutions up to SXGA 1280 x 1024.
The Furuno MU120C Marine Monitor features
a wide variety of inputs including: 2 RGB analog, 1 DVI-D (Digital Video Interface)
and 3 NTSC/PAL video inputs. The Furuno MU120C Marine Monitor may be used
as either the main or remote display for a variety of marine equipment, such
as Black Box radar, sounders, sonar and, NavNet. It can also be used for displaying
security cameras, video equipment, computers, etc.
Standard Features:
- Crystal clear 12.1" marine grade monitor
for use as main or remote display
- Resolution: 800 x 600 SVGA
- Built-in scaler allows monitor to
accept up to SXGA (1280 x 1024) resolution
- 1000+ Candela brightness and scratch
resistant A/R coating allows superior viewability in direct sunlight
- Wide range of inputs: 2 RGB analog,
1 Digital Video Interface (DVI) and 3 NTSC/PAL
- Fully dimmable
- Any three of the NTSC inputs are PIP
(Picture-In-Picture) capable, with adjustable size and screen location
- I/R Remote control included as standard
supply
- Table Top or Flush Mountable (table
top mounting bracket is optional)
- Waterproof Tested to IPX5 standard
(from front)
- Customizable Input names for easy
on-the-fly identification and switching between onboard radar, sonar,
sounder, camera, etc.
- Excellent viewing angle, (Left / Right
70 degrees, up 60 degrees, down 50 degrees)
- Automatic signal input recognition
and scaling for easy setup and installation
- Dedicated push-buttons for changing
monitor inputs and PIP source eliminates confusing menus
Power Requirements:
|
