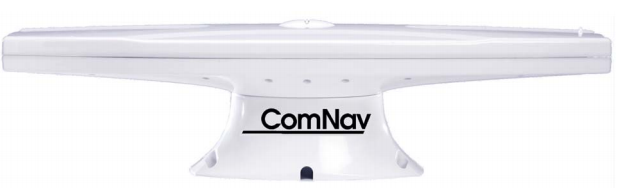

The Comnav G2 Compass w/30m cable, IMO Compliant, NEMA 0183 provides accurate heading and precise position for professionals. It supports both GPS and GLONASS satellites for complete redundancy, and boasts a heading accuracy of < 0.25 degrees rms, and position accuracy of < 0.3m with 95% confidence. This listing includes the G2 compass, 30m cable, and NMEA 0183 interface.
today for a free consultation!
Type approved as...
primary heading & positioning device
Heave, Pitch, Roll and Rate of Turn as standard output
Fully compatible with on board NMEA 0183, NMEA 2000® RADAR,
ECDIS, AIS, Cameras, SONAR, PC, and Autopilots
Heading updates 1 to 20 Hz
ComNav G2/G2B Brochure
ComNav G2/G2B Manual
ComNav G2/G2B Manual Addendum
The Comnav G2 Compass boasts pre-programmed default settings for heading, rate of turn, course over ground, lat/long positions, time, and date. It also features an integrated 9 Axis Inertial Measurement Core (IMC technology) that provides enhanced roll, tilt, and heading stability, even during temporary loss of satellite signals.
NMEA 0183 & NMEA 2000® interface
Compact integrated surface mounting with optional pole mount
1PPS output standard
CE certified for EMI and RFI immunity
IMO Compliant, Wheelmark, USCG approved
BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
Exceeds IP67 rating
