Model: CH300 - DISCONTINUED

Furuno CH300  Dual Frequency, Searchlight SONAR - DISCONTINUED
Contact Information

Furuno

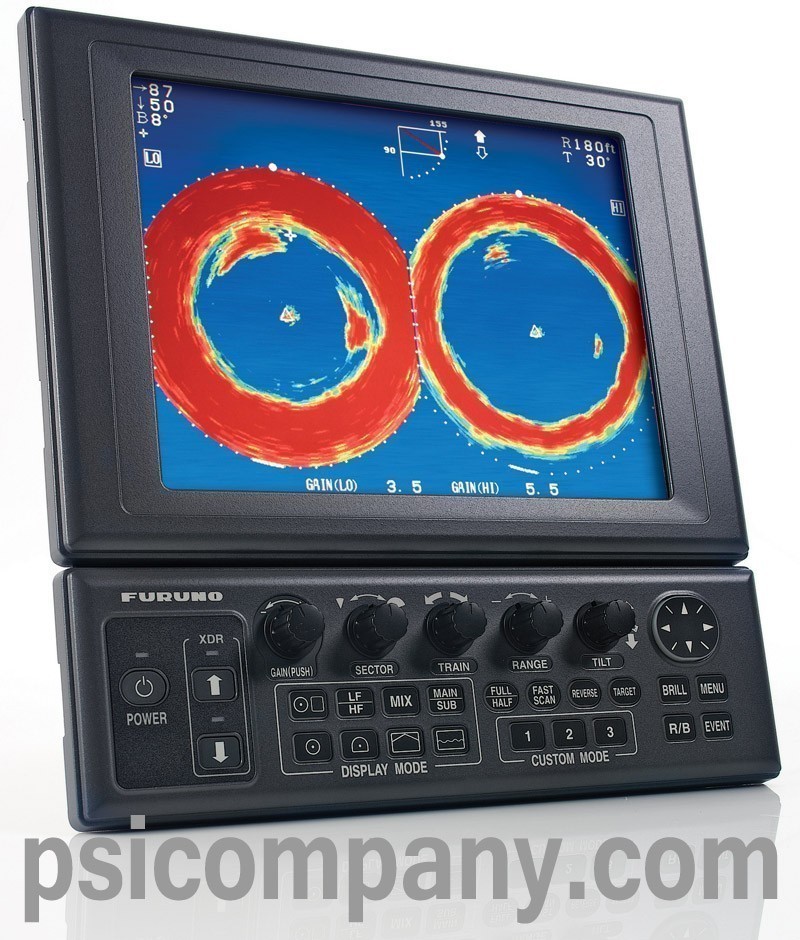

Furuno CH300 Dual Frequency, Searchlight SONAR - DISCONTINUED

The Furuno CH300 Sonar Dual Frequency Searchlight 85-215 kHz is the world's first dual-frequency searchlight sonar. Furuno CH300 Sonar is designed for a wide range of commercial or sport fishing vessels.

Contact us today for a free consultation!

Specifications
  • Display Size: 10.4 inches
  • Display Type: Color LCD
  • Range: 4000'
  • Power Output: 1 kW
  • Power Use: 12 or 24 VDC

Related Materials

Brochure
Installation Manual
Operator Manual
Sonar Tips


The transducers are incorporated in one sound dome. The high frequency of, 153 and 215 kHz, gives a highly detailed search near and all around the vessel. The lower frequency, 60 and 85 kHz, enables long range searches of over 500 meters. With advantages of both high and low frequency, the Furuno CH300 Sonar helps to search on a rough seabed and to greatly enhance fish school detection.

Furuno CH300 Sonar Dual Frequency Searchlight 85-215 kHz

A variety of presentation modes are available:
  • With horizontal and vertical scan, echo sounder and the combination mode displaying horizontal and vertical scan/historical/plotter presentations. The combination of horizontal and vertical scan helps evaluate the distribution of fish schools in both the horizontal and vertical planes simultaneously.

Features
  • Dual-frequency sonar
  • Space saving installation
  • Cross Section Scan provides instant view of vertical plane in any direction
  • Variety of display modes
  • Custom Mode keys allow short cut key functions and one-touch setup
  • Echo Sounder
  • Target lock tracks selected fish schools or L/L position
  • Optimal performance achieved by automatically switching pulse lengths according to range in use
  • Multi-language menu
The Furuno CH300 Sonar Dual Frequency Searchlight 85-215 kHz is the world's first dual-frequency searchlight sonar. Furuno CH300 Sonar is designed for a wide range of commercial or sport fishing vessels. Contact us today for a free consultation! Specifications Display Size: 10.4 inches Display Type: Color LCD Range: 4000' Power Output: 1 kW Power Use: 12 or 24 VDC Related Materials Brochure Installation...
[Show More]


Contact us today for a free consultation!

Brochure

Installation Manual

Operator Manual

Sonar Tips

This product was added to our catalog on Tuesday 10 April, 2018.
