Furuno CH250BB Black Box Searchlight SONAR

Furuno CH250BB Black Box Searchlight SONAR

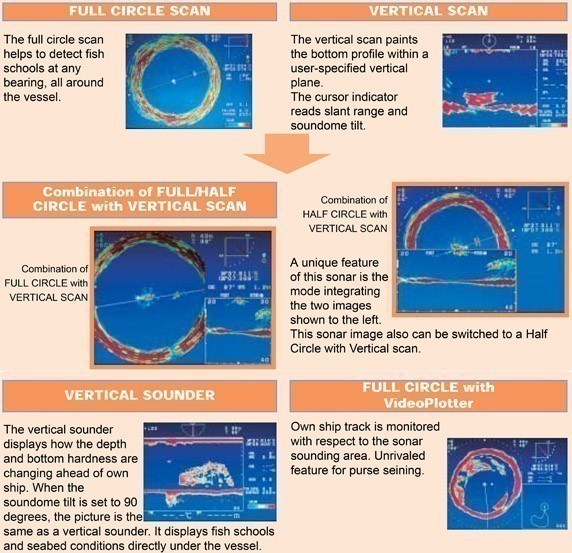

Display Range Frequency Power Output Power Use Supplied Separately 5000' 60/88/150 kHz Choose One 1.2 kW 12/24 VDC Choose One Furuno CH250BB Black Box Searchlight SONAR The Furuno CH250BB is the sport fisherman's dream machine, designed for boats 40 feet and up. This high-performance searchlight sonar displays fish and underwater objects using a user supplied VGA display. It has the ability to rapidly scan a full 360 degrees around the boat or just specified sectors. There are eight operational modes to choose from. The full circle/vertical slice mode finds fish targets and bottom structure all around the vessel, with a vertical slice display at the same time. The vertical slice mode gives you a fore and aft, surface to surface, expanded view of fish school distribution on the selected bearing. You can set it for a depth sounder mode, which has a tilt and train capability for forward or side looking. It is even stabilized against the boats motion. The CH250BB is a "Black Box" unit, which gives you the flexibility to utilize almost any CRT or LCD flat panel display or arrange for a second station remote display. Standard Features Waterproof, 10.4" Color TFT LCD, landscape orientation 8 or 16 color targets including white, selectable day or night background color 1200 Watt (RMS) transmitter power output, 60 kHz Automatic soundome retraction at preset ships speed between 5 to 15 knots, speed data req. 15 degree (H) x 12 degree (V) transducer beam angle, 1 degree tilt angle steps, +90 degrees max Transducer tilt angle may be set in 1 degree steps from + 5 to - 90 degrees Three Custom Mode Keys to select unique search features such as "Forward S/L Fan Scan" Audio Target Detection, continuous visual watch not necessary, optional speaker required Omnipad Driven Cursor Display Operating Modes Horizontal S/L Scan, 0 to 360 in 6 degree steps, 15 ranges to a maximum of 5000 feet Normal ( 6 degree) or Fast Scan ( 12 degree ) steps within a selected horizontal sector Split Screen, Zoomed Horizontal S/L Scan display with Nav data Vertical S/L Fan Scan, 0 to 180 in 12 degree steps, 15 ranges to a maximum of 2000 feet Normal ( 3 degree) or High Speed ( 6 degree) scan steps within selected vertical sector Split Screen Echo Sounder, 15 ranges, maximum 2000 feet, with Nav Data or A- Scope display Split Screen, Horizontal and Vertical S/L Scan Display Split Screen, combination Horizontal S/L Scan Plotter Overlay and Track Display Own ship speed and heading vector, duration set from 10 seconds to 6 minutes Split Screen, combination Horizontal S/L Scan and Strata Display Reverse train Target Lock, used in both Horizontal and Vertical S/L Fan Scan Target Lock on a preset L/L position AutoTilt Tracking, TLL output, L/L data input req. Power Requirements CH253 Transceiver, 12-32 VDC, 40 Watts CH2551 Hoist Unit, as noted above, 40 Watts Need More Info? • Product Brochure (.pdf) • Operations Manual (.pdf) • Installation Manual (.pdf) Notes: 8 inch hull tube is required but not supplied with the standard system CH256 handheld remote control with 5 meter cable is optional 400mm Travel Hoist Unit Available Upon Request
