Model: 432-0004-31-00S

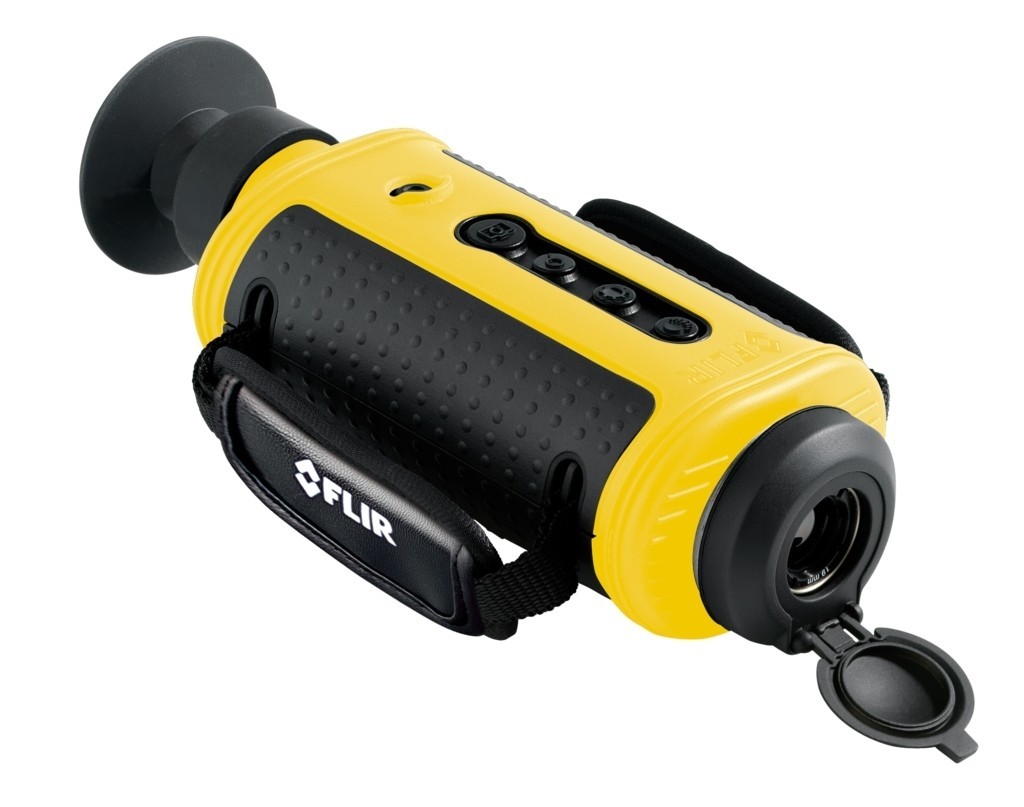

FLIR HM-224b First Mate II Thermal Imaging Camera, Handheld
Contact Information

FLIR Maritime Thermal Imaging Sy

FLIR HM-224b First Mate II Thermal Imaging Camera, Handheld

Lightweight and ultra-compact, the FLIR HM-224b First Mate II Thermal Imaging Camera is a handheld thermal night vision camera that allows you to see clearly, even in total darkness, regardless of the type of vessel you are on. This unit uses the same technology as other best-in-class FLIR cameras, such as the Voyager II and the M-Series line, providing you with everything you need to know about your surroundings in order to operate your vessel more safely, day or night.

Contact us today for a free consultation!

HM-224b Features
  • Rechargeable Li-Ion battery.
  • Rugged, all-weather construction and design.
  • Easy, simple, and intuitive 3 button operation.

Related Material

FLIR First Mate Handheld Thermal Imaging Camera Brochure
FLIR First Mate Handheld Thermal Imaging Camera Datasheet
FLIR First Mate Handheld Thermal Imaging Camera Operator's Manual



The FLIR HM-224b First Mate II Thermal Imaging Camera, Handheld uses a high quality thermal imaging core to provide better image clarity and detail, allowing you to see navigation hazards, people, and other vessels, even in total darkness, smoke, dust, or light fog. It can even detect faint heat signatures from things your radar might miss, such as floating debris. This unit includes all of the accessories seen below to help you make the most of its technology.

FLIR HM-224b First Mate II Thermal Imaging Camera, Handheld

HM-224b Specifications
  • Sensor Type: 240 x 180 VOx Microbolometer
  • Focal Length: 19mm
  • Start-Up from Stand-By: < 1.5 seconds
  • Thermal Sensitivity: <50 mK @ f/1.0
  • Video Output: NTSC or PAL composite; RCA jack
  • Water Ingress: IP-67, Submersible. Unit also floats.

Additional Specifications
  • Batteries: 4 AA Batteries, NiMH, Li-Ion, or Alkaline
  • Battery Life (Operating): > 5 hrs. on NiMH batteries
  • Battery Life (Stand-By): 120 hours on NiMH batteries
  • "Detect Man" Range Performance: ~1033' (without extender), ~1815' (with 2x extender)
  • "Detect Small Vessel" Range Performance: ~2940' (without extender), ~4938' (with 2x extender)
Lightweight and ultra-compact, the FLIR HM-224b First Mate II Thermal Imaging Camera is a handheld thermal night vision camera that allows you to see clearly, even in total darkness, regardless of the type of vessel you are on. This unit uses the same technology as other best-in-class FLIR cameras, such as the Voyager II and the M-Series line, providing you with everything you need to know about your surroundings in order to operate your vessel more safely, day or night. ...
[Show More]


Contact us today for a free consultation!

FLIR First Mate Handheld Thermal Imaging Camera Brochure

FLIR First Mate Handheld Thermal Imaging Camera Datasheet

FLIR First Mate Handheld Thermal Imaging Camera Operator's Manual
