|Designed for a wide
range of vessels, this new radar offers crystal clear target
presentation with automatic Gain/Sea/Rain controls to
deliver noise-free radar presentation. All new display modes
will assist you in navigating safely on all waters, allowing
you to see far away objects before they are visible in the
dark, fog, or any other weather condition.
today for a free consultation!
Display Size: 10.4" Color LCD
Antenna Size: 24"
Antenna Type: Radome
Range: 36 n.m.
Power Output: 4 kW
1835/1935/1945 Series Brochure
1835 1935 1945 Operator's Manual
1835_1935_1945 Installation Manual
1835/1935/1945 Quick Operator's Guide
1835/1935/1945 Radar Dimensions
Navigation equipment such as chart plotters and sounders can
be interconnected through Furuno's programmable NMEA 0183
interface system, affording operators the ability to expand
their boat's system as needed. With the optional ARP11
internal ARPA PCB, up to 10 ARPA targets can be tracked and
overlaid on the radar screen to assist the operator in
monitoring other vessel movements. A variety of navigational
information such as vessel name, speed, ROT, draft, and the
destination of the selected targets can be included in real
With a push of the “OFF CENTER” button, own ship position
can be shifted to a pre-registered point on the screen,
allowing the operator to focus on a specific area ahead of
or around the vessel without losing track of the position.

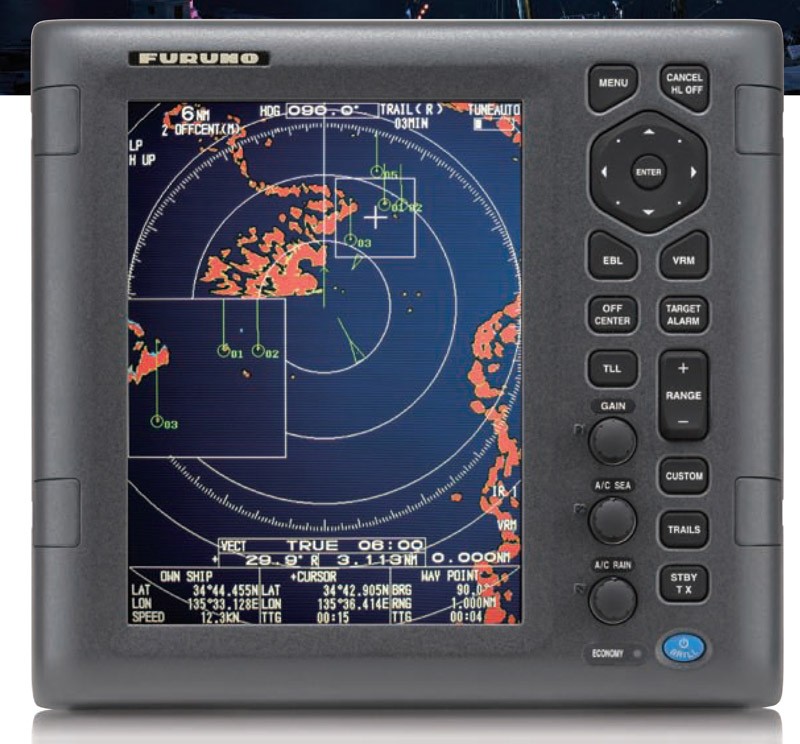

Furuno 1835 Features:
- Easy-to-install 10.4" portrait color LCD (350 cd)
- Bonded LCD provides clear view in all weather
- Stable ARPA target-tracking with zoom display function
available (Requires optional ARP11 PCB and heading
- AIS tracking (Requires external AIS and heading input)
- Full Screen Mode lets operators observe a wider range
around the vessel
- Enhanced auto tuning/gain/anti-clutter controls
- Echoes in yellow, green, orange or multiple colors
