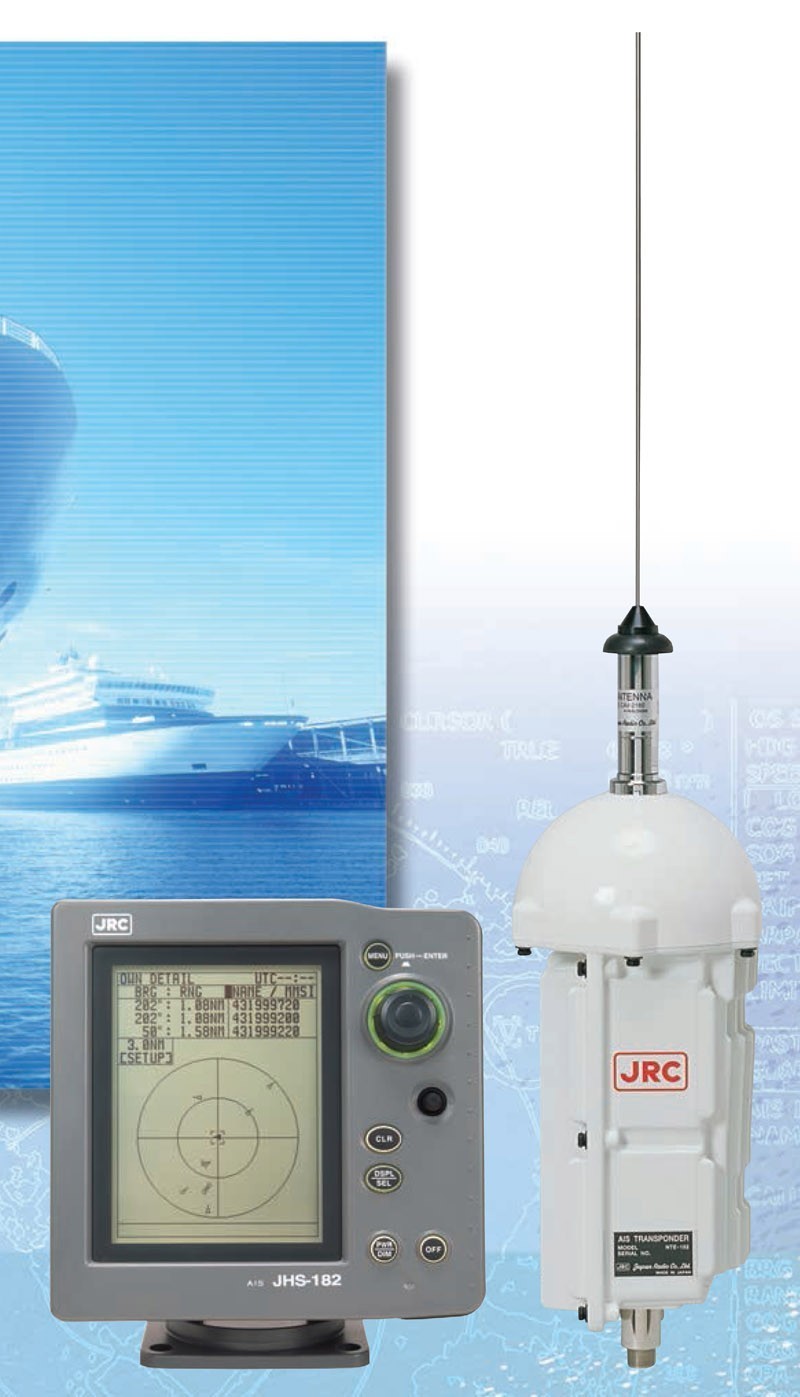

The JHS-182 Automatic
Identification System (AIS) is a compact Class "A" universal
AIS with 3 components: AIS Transponder, AIS Controller, and
a Connection Box. It includes a 5.7" FSTN LCD display
and has the capability for a second display.
us today for a free consultation!
Display: 5.7-inch FSTN LCD
Back Light: For LCD...
Dimmer Control: 4 steps including off
Data Interface: For Connection Box: 1
For Pilot-plug: 1 (IEC61162-2)
For Maintenance: 1 (RS-232C)
Power supply : 24VDC (-10%, +30%)
Operating Temperature: -15 deg.C to +55
JRC JHS-182 Automatic Identification
The JHS-182 requires a single coaxial cable for
installation, but includes a built-in Pilot Plug if your
installation requires it. Expanded connection
capabilities to ECDIS and Radar are possible through
auxiliary output ports. JHS-182 AIS is able to
broadcast the ship's information as well as receive and
display information from other ships in the VHF band (using
International Standard Compliance
The JHS-182 is compliant with:
MSC 74(69) Annex 3, IEC6199302, ITU-R M.1371. IEC60945 and

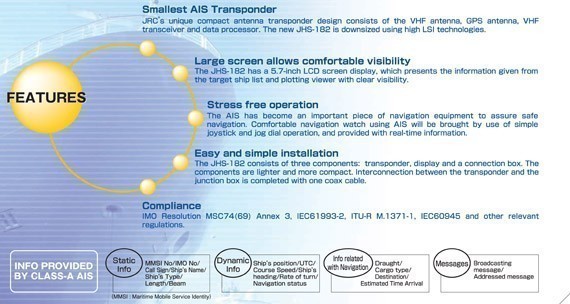

JRC JHS - 182 Features
single-unit structure combing the antenna with the
transponder guarantees maximum power transmitted and
received and easy installation.
interfaces for Radar, ECDIS and other peripherals.
function of displaying a fellow ship’s identification
maintenance support is available. (Remote Diagnostics
us today for a free consultation!JRC JHS-182 Automatic Identification
