Model: PM-12-40 W/CHARGING FUNCTION OPTION

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output
$1,247.00
Contact Information

NewMar

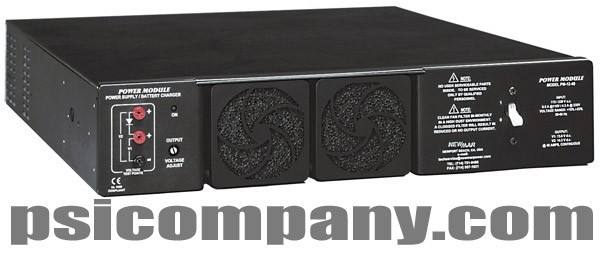

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output

The NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output is a unique rectifier module that can be used as a power supply or as a battery charger. Use alone or in combination with other units to expand functionality, from 500 to 10,000 Watts per rack. This model includes the control board for the charger function.

Contact us today for a free consultation!

Specifications
  • Charger function control board.
  • Watts: 560
  • Output VDC: 13.6
  • Input: 85-135/170-270 VAC (selectable), 47 - 63 Hz.

Related Material

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output Brochure
NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output Manual
NewMar Online Catalog



The NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output boasts a three stage charge function and temperature compensation for battery charging. It is designed to fit 19" or 23" rackmounts, but bulkhead or shelf mounting brackets are available as an option, and an optional quick connect wiring kit lets you change modules without having to shut the system down.

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output

Features
  • Form C alarm contacts.
  • Built-in oring diode for N+1 or parallel configuration.
  • Remote shutdown control option.
  • Output fuse for reverse polarity.

Additional Specifications
  • Front Panel: Anodized aluminum.
  • Base & Cover: laminated vinyl.
  • Forced air cooling, filter provided.
  • Front panel voltage test points.
The NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output is a unique rectifier module that can be used as a power supply or as a battery charger. Use alone or in combination with other units to expand functionality, from 500 to 10,000 Watts per rack. This model includes the control board for the charger function. Contact us today for a free consultation! Specifications Charger function control board. Watts: 560 Output...
[Show More]


Contact us today for a free consultation!

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output Brochure

NewMar PM-12-40 W/ Charger Function Power Module, 13.6 Volts DC Output Manual

NewMar Online Catalog

This product was added to our catalog on Wednesday 19 December, 2018.
